Brand Name : | Newart |
Model Number : | ST |
Certification : | ISO,CE |
Price : | Negotiation |
Payment Terms : | T/T,L/C, Western Union |
Supply Ability : | 800pcs/month |
Delivery Time : | 7-10 days after deposit |

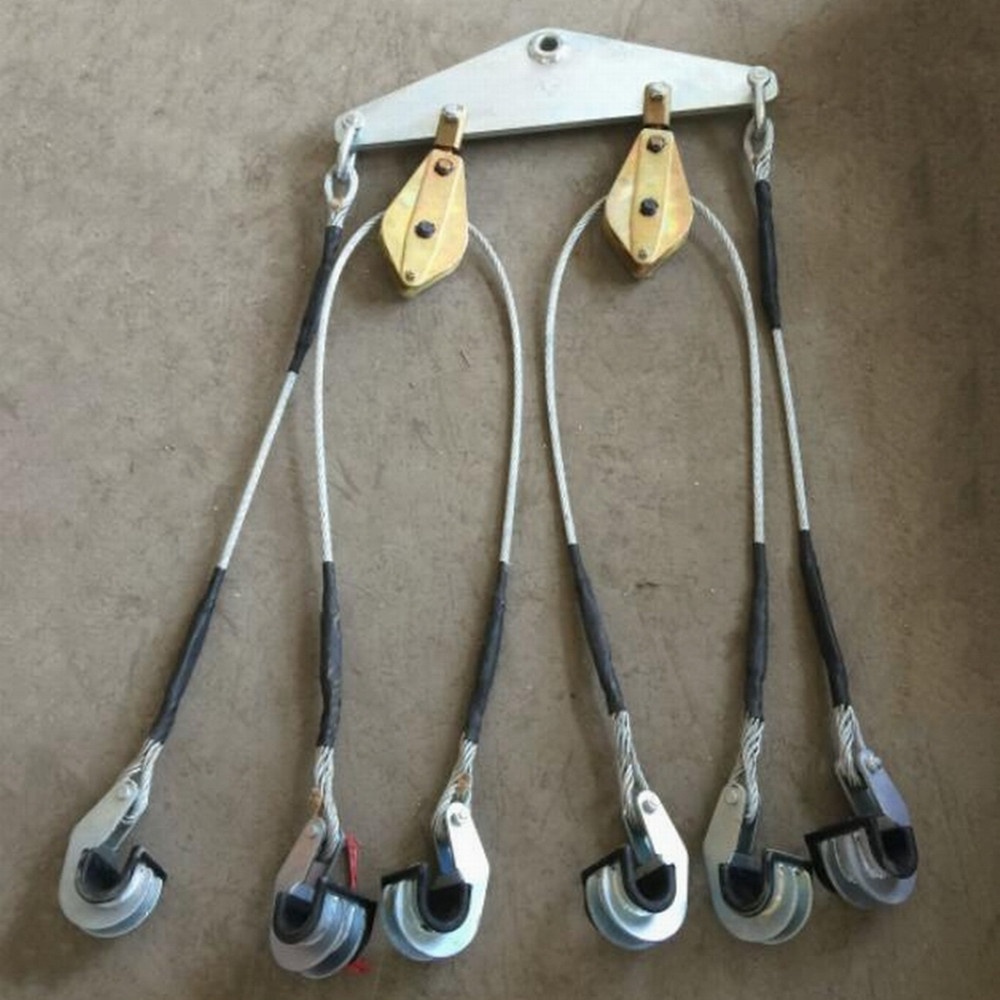

Aluminium Conductors ACSR Two Three Four Six Bundled Conductors Lifter
Feature
1. Stable structure
2. The claws are made of alloy steel
3. High wear-resistant lifting wheel Applicatoin Suitable for lifting wires when erecting split wires during construction
Item number | Model | Rated Load (KN) | Hook slot length (mm) | Weight (kg) | Note |
19112 | ST25-2 | 2x12 | 120 | 13 | Two |
19113 | ST50-2 | 2x15 | 160 | 25 | Two |
19114 | ST80-2 | 2x40 | 250 | 40 | Two |
19108 | ST36-3 | 3x12 | 120 | 21 | Three |
19109 | ST75-3 | 3x25 | 160 | 35 | Three |
19110 | ST120-3 | 3x40 | 250 | 60 | Three |
19115 | ST48-4 | 4x12 | 120 | 35 | Four |
19116 | ST100-4 | 4x25 | 160 | 60 | Four |
19117 | ST160-4 | 4x40 | 250 | 90 | Four |
19118A | ST150-6 | 6x25 | 160 | 70 | Sex |
19118B | ST240-6 | 6x40 | 250 | 110 | Sex |
19119A | ST200-8 | 8x25 | 160 | 120 | Eight |
19119B | ST320-8 | 5+6 | 250 | 160 | Eight |
![]() |
