Conductor Earth Grounding Wire String Pulley for Stringing Grounding Stringing Block Grounding Earthing Pulley

Description

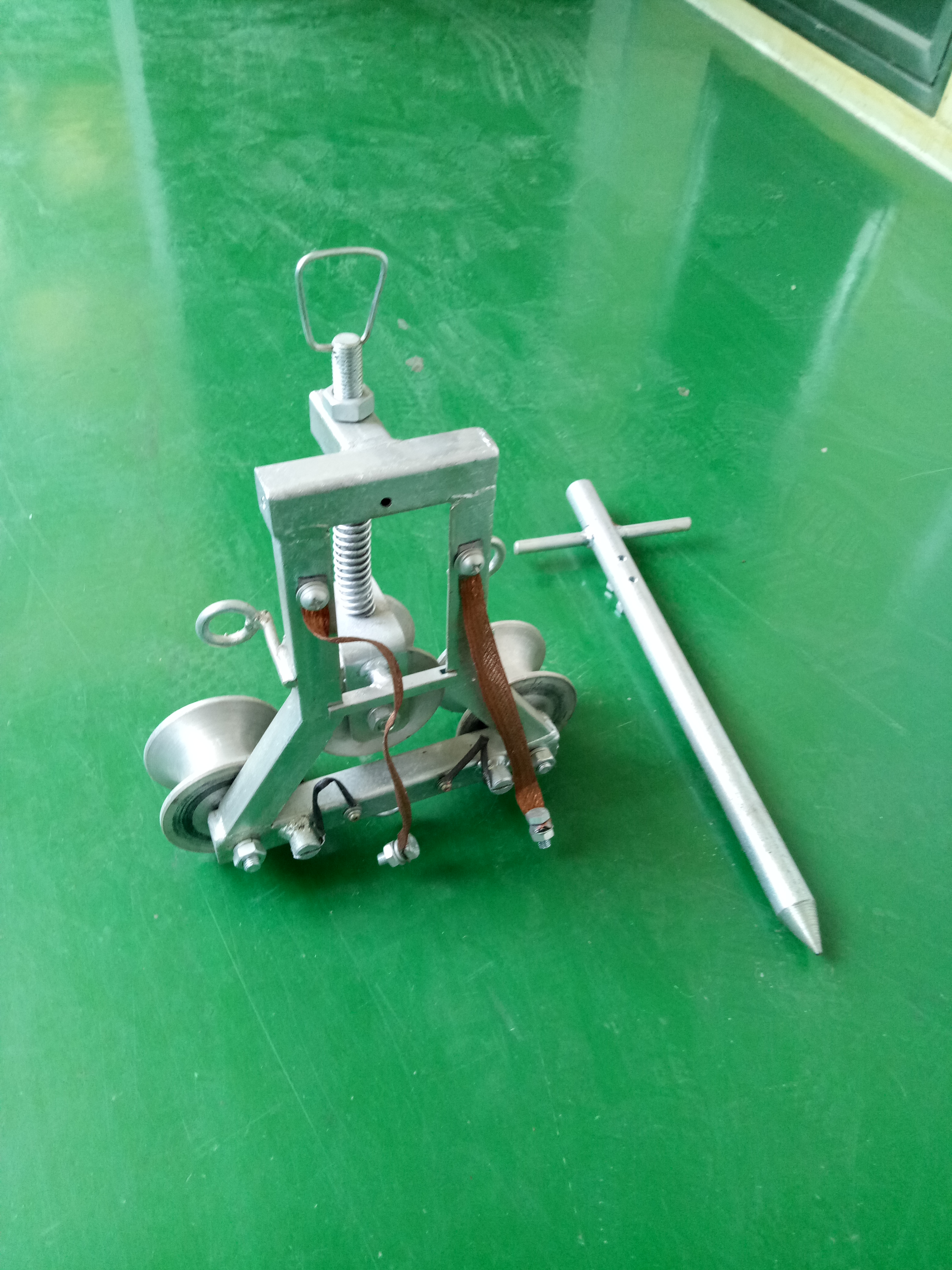

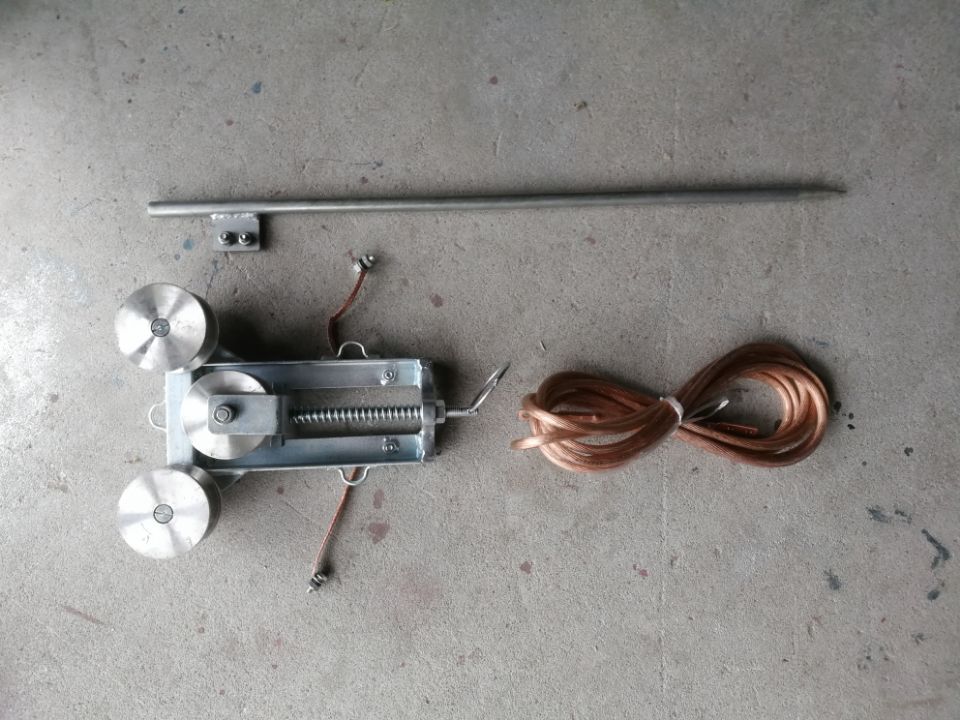

This hook grounding block can remove the induced electricity from the conductor or earth wire during the stringing operation. When in use, it can be mounted on the outlet side of tensioner or the inlet side of puller, and then pulled by two stay wires.

Our hook grounding block is designed with triple sheave mechanism, which is automatically compacted by the torsion spring. The maximum allowable current reaches 100A, and the transit time is only 0.1 second. The recommended sectional area of the supporting earth wire is 25mm2.

Technical Data
