Metal Manual Boat Winch / Hand Operated Winch 10m Marine Trailer Caravan 1200lb

Ask Lasest Price
Brand Name :	Newart
Model Number :	LDC1200W
Certification :	ISO TUV CE
Price :	Negotiable
Payment Terms :	L/C, T/T, , Western Union, D/A, D/P
Supply Ability :	10000pcs/month
Delivery Time :	30-35days after deposit

Add to Cart

Product Details
Company Profile

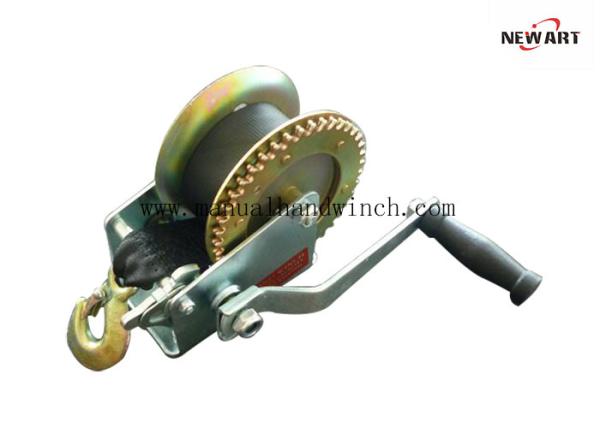

Metal Manual Boat Winch / Hand Operated Winch 10m Marine Trailer Caravan 1200lb

Manual Hand Winch 1200LBS Cable Manual 8M Synthetic Rope Boat Trailer Car Mount

One Year Commercial Warranty

DESCRIPTION

Synthetic belt :5 cm (W) × 8 m (L)
Maximum Pulling Capacity: 1200 LBS/540 kgs
Overall Dimensions: 250 mm × 100 mm × 160 mm
Handle Length: 225 mm
Drum-Hub Dia: 18 mm
Weight:3 kgs

Feature:

Reversible ratchet to allow cranking webbing or cable onto the drum in either direction.
Load matched gear ratios for easier cranking.
Positive action brake can hold the load in any position.
Heavy duty winch body, Standard mounting holes.
Mechanical components enclosed for protection.
Surface Treatment: Powder coating and zinc plating.
Carbon steel heat treated bushes, shaft and gears.
Resistant to bad weather, Easy to mount, Portable.
Mooring Hook Equipped with a Safety pawl.

Specifications:

Model	Capacity (LBS/KN)	Gear Ratio	Handle Length(mm)	Drum-Hub Dia(mm)	Cable Size (mm×m)	Size of Color Belt	PCS/Carton	Size package (cm)
LDC600C	600(270)	3.1:1	165	φ16	φ4.2×8	1.0×50×8m	6	59×26×16
LDC800C	800(360)	3.1:1	175	φ16	φ4.2×8	1.0×50×8m	6	59×26×16
LDC1000C	1000(450)	4.1:1	200	φ18	φ4.2×10	1.2×50×8m	6	66×27×18
LDC1200C	1200(540)	4.1:1	225	φ18	φ4.2×10	1.4×50×8m	6	66×27×18
LDC1400C	1400(630)	4.5:1	225	φ18	φ4.5×10	1.6×50×8m	6	67×27×19
LDC1600C	1600(720)	5.1:1	225	φ20	φ4.8×10	1.6×50×8m	4	46×31×20
LDC1800C	1800(810)	4.1:1&9.8:1	250	φ20	φ4.8×10	1.8×50×8m	4	52×31×20
LDC2000C	2000(900)	4.1:1&9.8:1	250	φ20	φ5×10	1.8×50×8m	4	52×31×20
LDC2500C	2500(1100)	5.1:1&12.2:1	275	φ42	φ5×10	2.0×50×8m	4	54×31×22
LDC3000C	3000(1363)	5.1:1&12.2:1	275	φ42	φ5×10	2.0×50×8m	4	54×31×22
LDC3500C	3500(1590)	5.1:1&12.2:1	275	φ42	φ5.5×10	2.0×50×8m	4	54×31×22
