    Marine Boat Manual Hand Winch Crank For RV Trailer ATV 600lbs CE Approved

    Ask Lasest Price
    Brand Name : Newart
    Model Number : LDC600
    Certification : CE & SGS ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000pcs/month
    Delivery Time : 35days after payment
    • Product Details
    • Company Profile

    Marine Boat Manual Hand Winch Crank For RV Trailer ATV 600lbs CE Approved

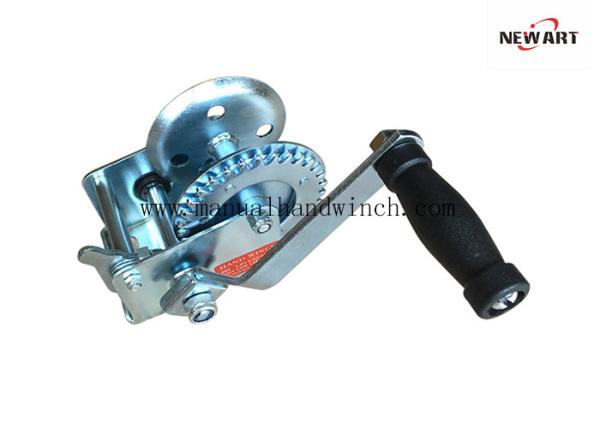

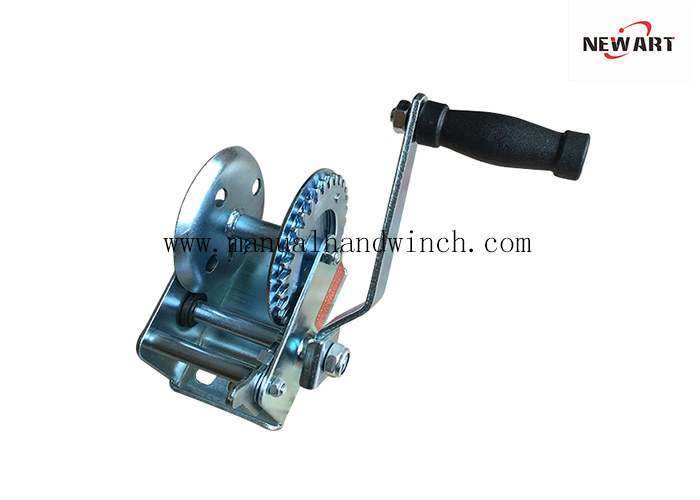

    Marine Boat Winch Manual Hand Crank for RV Trailer ATV 600lbs


    Portable manually operated winch

    Smooth turning roller grip handle

    Ideal for Boat Haulage or Trailer Mounting

    Conveniently drilled hole in base

    Zinc plated finish for resistance to rust weathering corrosion

    Internally lubricated drum bushing and pinion gear shaft bearing for long life and easy operation

    Shafts gear of high tensile alloy steel formed reinforcements in frame give added strength


    Description & Specifications:

    • Heavy Duty Manual Hand Crank Winch - 600 Lb Capacity - Includes 23 Ft of 2" Strap
    • Our heavy duty hand crank winches are most often used for mounting on utility trailers, boat trailers and utility vehicles and similar applications. Our line of hand crank winches are universal and can be used in a wide variety of applications
    • Winch Type: Manual - Hand Crank - Ratchet Type
    • Capacity: 600 Lbs
    • Strap Included: 23 Ft of 2" - Nylon
    • Gear Ratio: 3.1:1
    • Ratchet Switch: 3 position ratcheting - first position: pulling / second position: release function / third position: both pulling and releasing
    • Base Mounting Holes: 3/8" Diameter
    • Questions? Call our Customer Service Department Toll Free
    • Overall Dimensions: 19.68" L x 11.8" W x 11.8" H
    • Ship Weight: 4.5 Lbs
    • 1 Year Warranty (Includes Parts & Labor)

    Capacity from 600lbs to 3500lbs for choice,600lbs specifications in details below

    ModelCapacity (LBS/KN)Gear RatioHandle Length(mm)Drum-Hub Dia(mm)Cable Size (mm×m)Size of Color BeltPCS/CartonSize package (cm)
    LDC600C600(270)3.1:1165φ16φ4.2×81.0×50×8m659×26×16
    LDC800C800(360)3.1:1175φ16φ4.2×81.0×50×8m659×26×16
    LDC1000C1000(450)4.1:1200φ18φ4.2×101.2×50×8m666×27×18
    LDC1200C1200(540)4.1:1225φ18φ4.2×101.4×50×8m666×27×18
    LDC1400C1400(630)4.5:1225φ18φ4.5×101.6×50×8m667×27×19
    LDC1600C1600(720)5.1:1225φ20φ4.8×101.6×50×8m446×31×20
    LDC1800C1800(810)4.1:1&9.8:1250φ20φ4.8×101.8×50×8m452×31×20
    LDC2000C2000(900)4.1:1&9.8:1250φ20φ5×101.8×50×8m452×31×20
    LDC2500C2500(1100)5.1:1&12.2:1275φ42φ5×102.0×50×8m454×31×22
    LDC3000C3000(1363)5.1:1&12.2:1275φ42φ5×102.0×50×8m454×31×22
    LDC3500C3500(1590)5.1:1&12.2:1275φ42φ5.5×102.0×50×8m454×31×22
