SHDN822 Cable Large diameter String Pulley Block And Tackle ,Nylon Sheave Stringing Block

This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters.

The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.

1.Maximum suitable conductor ACSR630.

2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110

3.Rubber lined MC nylon sheave for conductor can be customized.

822mmTechnical Parameters

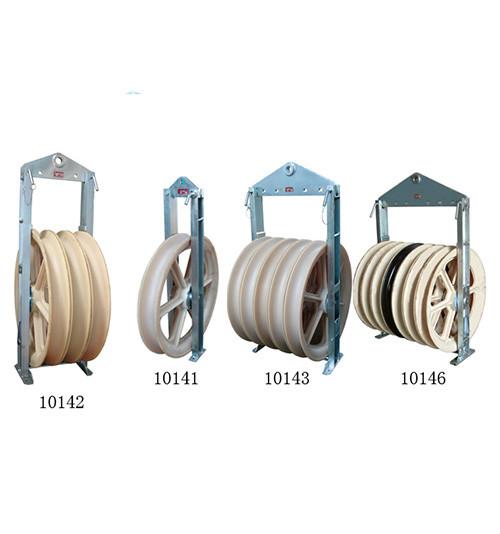

Item Number	Model	Number of Sheave	Rated Load (kN)	Weight (kg)	Sheave Features
10141	SHDN822	1	30	40	MC nylon sheave
10142	SHSQN822	3	60	118	Middle: cast steel sheave Conductor: MC nylon wheel
10143	SHWQN822	5	120	180
10146	SHQ822	7	120	285	Middle: cast steel sheave Conductor: MC nylon wheel
10148	SHJ822	9	150	445
