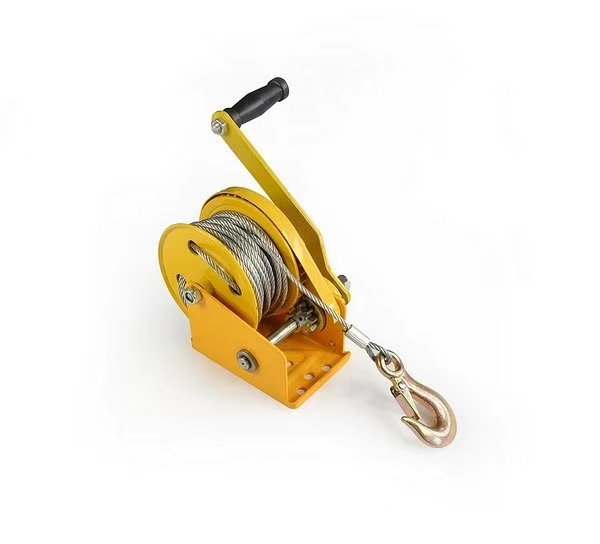

    1200 lb Braking Hand Anchor Winch / Hand Winch with Friction Brake For Electrical Tower

    Ask Lasest Price
    Brand Name : Newart
    Model Number : LDE1200C
    Certification : ISO,TUV and CE
    Price : Get the newest price
    Payment Terms : T/T,L/C, Western Union, MoneyGram
    Supply Ability : 8000pcs/month
    Delivery Time : 30 days after payment
    • Product Details
    • Company Profile

    1200 lb Braking Hand Anchor Winch / Hand Winch with Friction Brake For Electrical Tower

    1200 lb Braking Hand Anchor Winch / Hand Winch with Friction Brake For Electrical Tower

    Introduction:
    self locking brake hand winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate. All the mechanical components are enclosed for protection against dust, dirt and rain contamination. This equipment has a lifting capacity ranging from 800lbs to 2600lbs.

    FEATURE:
    •High quality multi-purpose winch
    •Gears and brakes fully covered to prevent dust, dirt and rain contamination
    •Universal mounting plate
    •Finished in high quality powder coat paint offering excellent corrosion protection
    •Automatic load-actuated brake can hold the load in any position
    •Heat treated gears
    •Available as 800lb, 1200lb, 1800lb, and 2600lb models.
    •Very low operator effort required for easy operation
    •For cable and strap
    •Operating temperature of -20°C to +80°C (temperature range of -40°C to +80°C available as an option)

    Note of Winch :
    Please do not overload the use of.
    When using, please wear thick leather hand gloves, do not let the hand contact.
    Do not use the brake as a limit switch.
    Make sure the rope holds at least three turns of wire rope.
    To participate in the construction of welders, electricians, rigger must be certified.
    To enter the construction site must wear a safety helmet.
    Before the operation, the workers are not allowed to drink.


    ModelLDE1200C
    Safe working load (Lbs)1200lbs(545kg)
    Test load (KN)8
    Drum-hub Diameter (mm)¢48.5
    Gear ratio4.2:1
    Hand length (mm)210
    N.W/G.W (kg)3.7/4.5
    Package size (cm)16X16X22

    There also have 1800lbs and 2600lbs for choice
