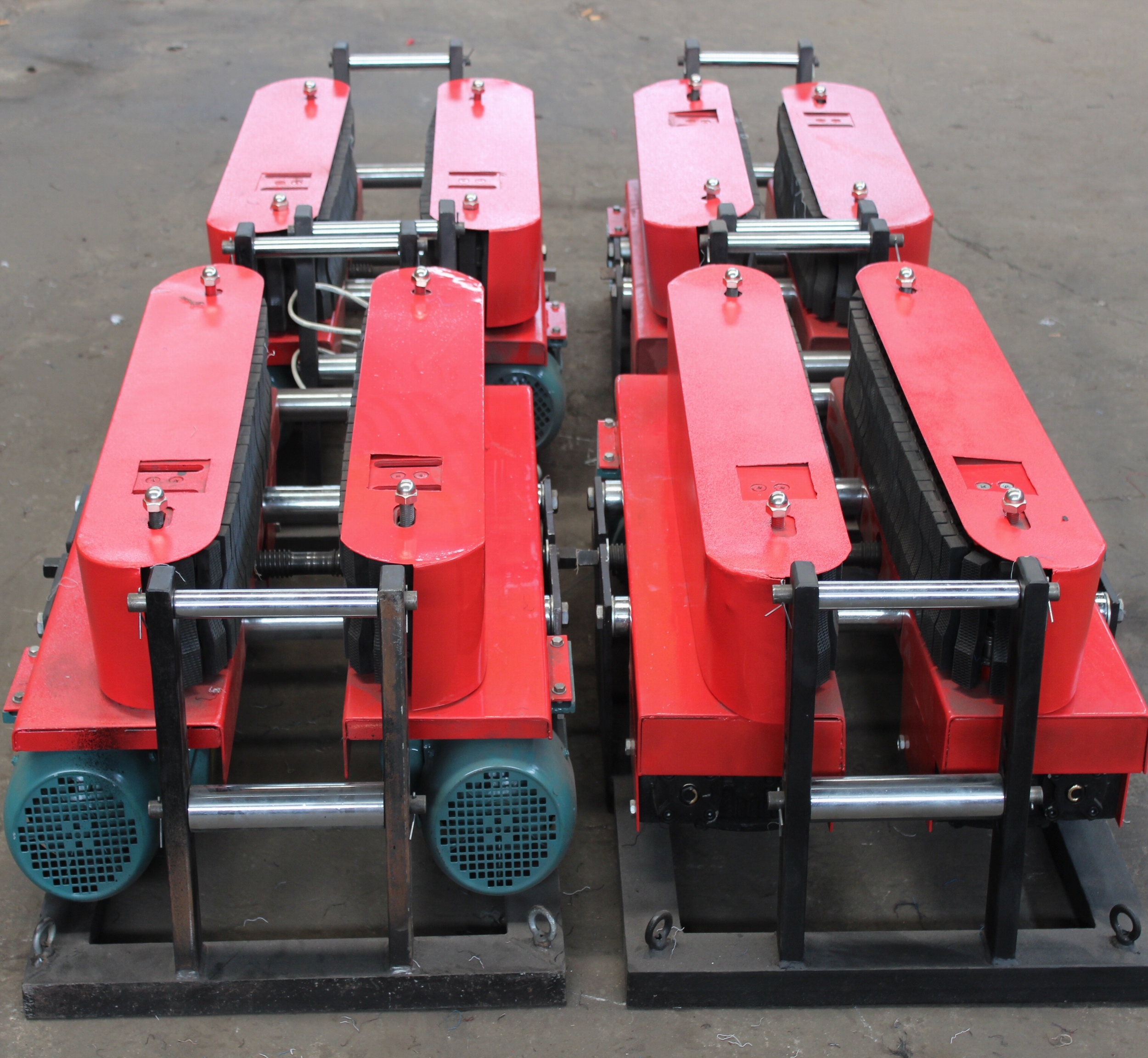

    OEM Electrical Cable Tools DCS Series Conveyer Cable Pulling Machine

    Ask Lasest Price
    Brand Name : Newart
    Model Number : DCS-5
    Certification : ISO
    Price : Negotiable
    Delivery Time : 35days
    Supply Ability : 3500pcs per month
    • Product Details
    • Company Profile

    OEM Electrical Cable Tools DCS Series Conveyer Cable Pulling Machine

    Electrical Cable Tools DCS Series Conveyer Cable Pulling Machine


    Application/Features


    The machine is suitable for urban power network reconstruction and new laying of cables,

    especially suitable for long distance cable release,reducing labor intensity,

    and also improving the quality of the project.

    The thrust of the machine is large and small,easy to be put the construction

    of the well,and its weight is light.

    The machine can be pushed by single machine,and also can be connected in series with a

    machine,and the synchronization of several machines is controlled by a control box.

    The conveyor wheel is made of rubber die casting,which will not damage the cable sheath,

    and adjust the center distance according to the external diameter of the cable .


    Technical Data


    Item numberModel

    Motor Power

    (KW)

    Clamping force

    (KN)

    Pull Force

    (KN)

    Conveying speed

    (M/MIN)

    Outline size

    (MM)

    Diameter of cable

    (MM)

    Supply Voltage

    (V)

    Weight

    (KG)

    21103DCS-51.1*2≤2.779950*500*40030-180380150
    21105DCS-8B1.1*2≤2.7961000*530*40030-200380195

    Quality OEM Electrical Cable Tools DCS Series Conveyer Cable Pulling Machine for sale
