Single Sheave Stringing Cable Pulley Block With Hook For ACSR Conductor

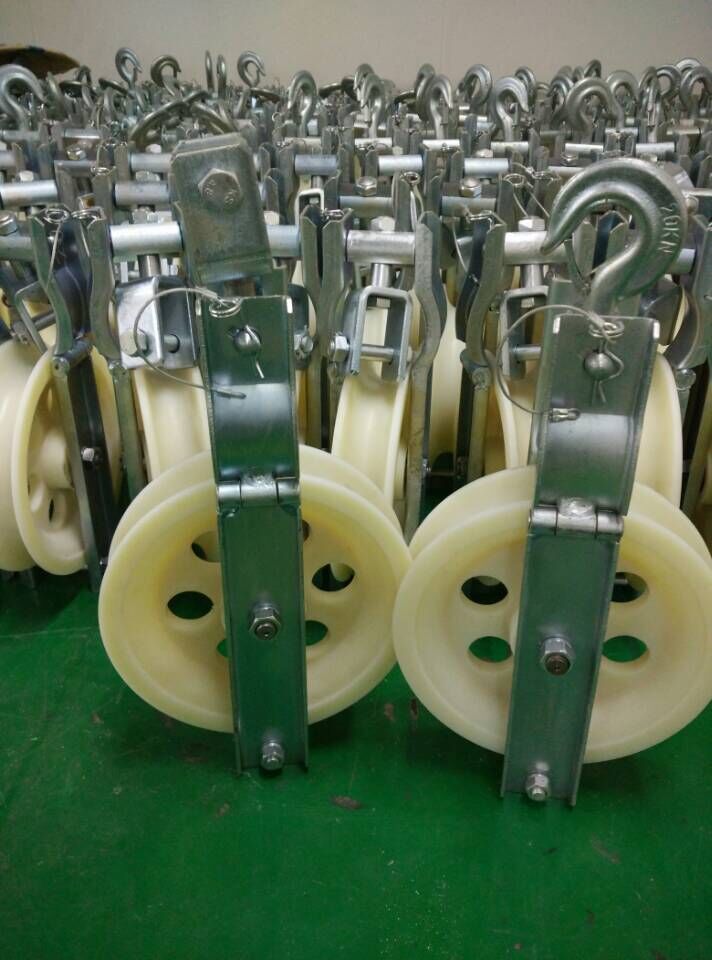

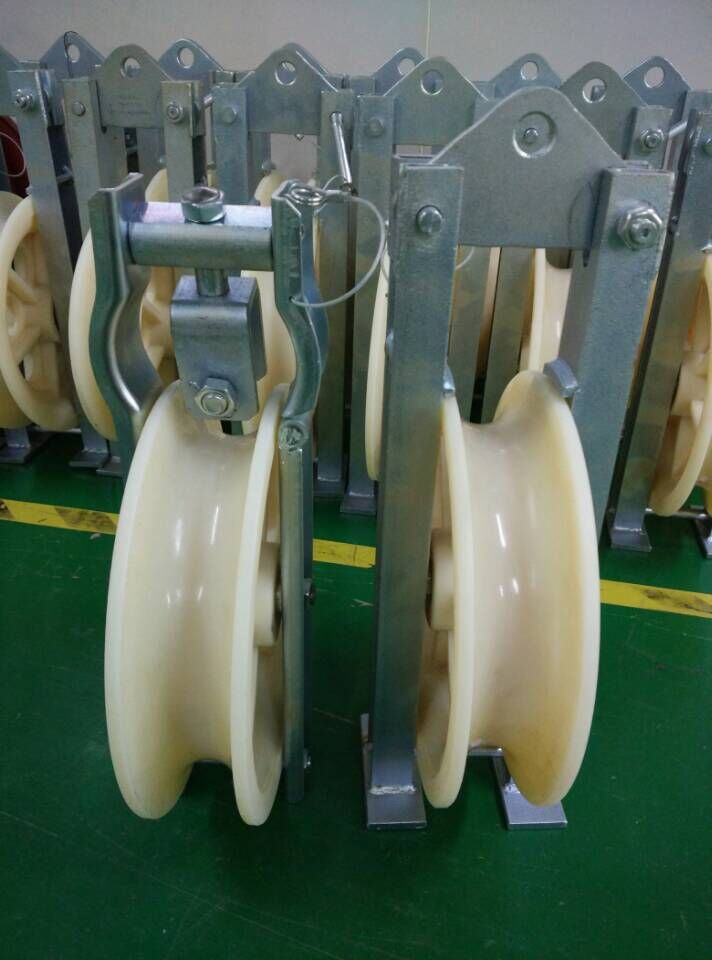

Single Sheave Stringing Pulley Block With Hook for ACSR Conductor

Use and Characteristic

Apply to pull conductor on straight pole.Splicing sleeve,steel wire rope and connector can pass through the groove.

Pulley Block With Hook Single Sheave is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.

The wheel groove can be through with clamp pipe, aluminum tube, connector etc..

The material is aluminum alloy and MC nylon .

Pulley pendant is combined plate and hook type.

The stringing roller is suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead transmission line.
The sheaves of stringing block are made of aluminum alloy lined with neoprene or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel.

FAQ:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement .When your orders reach your local nearest Seaport or River port, the logistics company will infrom you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products.

Please feel free to feedback us immediately if you are not satisfied with our quality or service, If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service .we have a showroom in Fenghua,Ningbo,China.

If you want to order our products and visit our company, please contact us to make an appointment.

Item number	Model	Suitable conductor	Rated load	Weight	Remark
			(kN)	(kg)
10171	SHD-120×30	LGJ25～70	5	1.5
10172	SHD-160×40	LGJ95～120	10	2.5	Aluminium sheave
10173	SHD-200×40	LGJ150～240	15	4
10174	SHD-200×60	LGJ150～240	15	4.6
10175	SHD-250×40	LGJ150～240	20	4.6
10176	SHD-250×60	LGJ300～400	20	6
10177	SHD-270×60	LGJ300～400	20	7
10178	SHD-320×60	LGJ300～400	20	9.5
10179	SHD-400×80	LGJ400～500	20	15
10191	SHDN-120×30	LGJ25～70	5	1.5
10192	SHDN-160×40	LGJ95～120	10	2.5	Nylon sheave
10193	SHDN-200×40	LGJ150～240	15	3.6
10194	SHDN-200×60	LGJ150～240	15	4
10195	SHDN-250×40	LGJ150～240	20	4
10196	SHDN-250×60	LGJ300～400	20	4.5
10197	SHDN-270×60	LGJ300～400	20	5.6
10198	SHDN-320×60	LGJ300～400	20	6.7
10198-1	SHDN-320×80	LGJ300～400	20	8
10199	SHDN-400×80	LGJ400～500	20	13
10199-1	SHDN-400×100	LGJ400～500	20	15
10199-2	SHDN-400×120	LGJ400～500	20	18

1.The product is classified as hook style and clevisstyle

2.More specification can be customized .
