Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter

    Buy cheap Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter from wholesalers

    Buy cheap Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter from wholesalers
    • Buy cheap Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter from wholesalers
    • Buy cheap Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter from wholesalers
    • Buy cheap Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter from wholesalers
    • Buy cheap Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter from wholesalers

    Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter

    Ask Lasest Price
    Brand Name : Newart
    Model Number : CC-50A,CPC-50A,HT-50A
    Certification : ISO
    Price : Negotiable
    Delivery Time : 15 days after payment
    Supply Ability : 1000pcs per month
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    Durable Transmission Line Tools , Integral Manual Hydraulic Cable Cutter

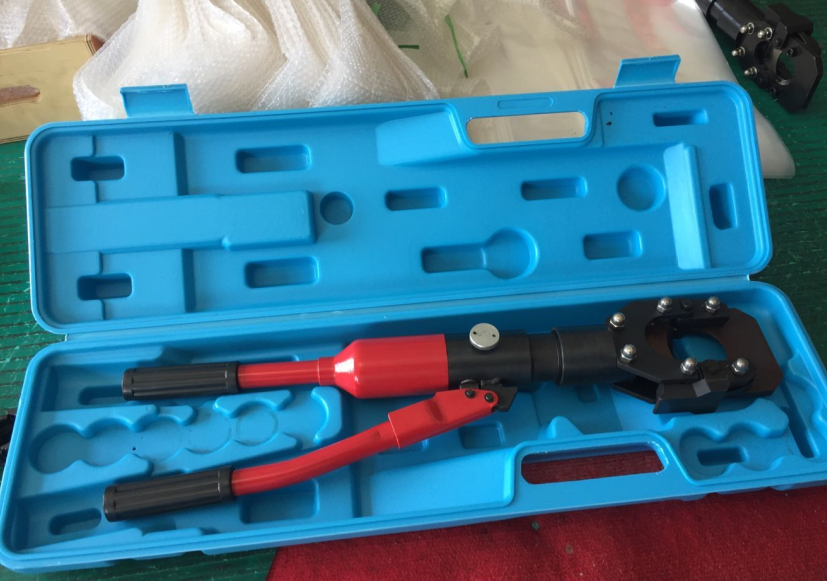

    Integral Manual Hydraulic Cable Cutter


    Hydraulic Cable Cutter Introduction


    1.Hand operated hydraulic tool specifically designed to cut copper, aluminium and tel cables having a max overall diameter from 40 to 85mm.

    2.The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the cable and a slower more powerful speed for cutting.

    3.The blades are manufactured from high strength special steel, heat treated to ensure a long service life.

    4.The head can be easily opened to allow the cutting of running cables.


    Hydraulic Cable Cutter Technical Data


    Item number21447A21447B21447C
    ModelCC-50ACPC-50AHT-50A

    Crimping

    force

    100KN80KN70KN

    Cutting

    range

    CU/AL

    cable Φ50mm max

    steel rope

    cable Φ18mm max

    steel rope

    cable Φ15mm max

    ACSR

    cable Φ50mm ma

    steel

    strand Φ10mm max

    armored CU/AL

    cable Φ50mm max

    ACSR

    cable Φ50mm max

    strand Φ16mm max

    armored CU/AL

    cable Φ50mm max

    Stroke50mm50mm40mm

    Length

    approx.620mmapprox.620mmapprox.660mm
    Weight(kg)

    approx.N.W6.1KG

    G.W9.1KG

    approx.N.W6.2KG

    G.W9.2KG

    approx.N.W6.5KG

    G.W8.9KG

    Packageplastic boxplastic boxplastic box

    Details
