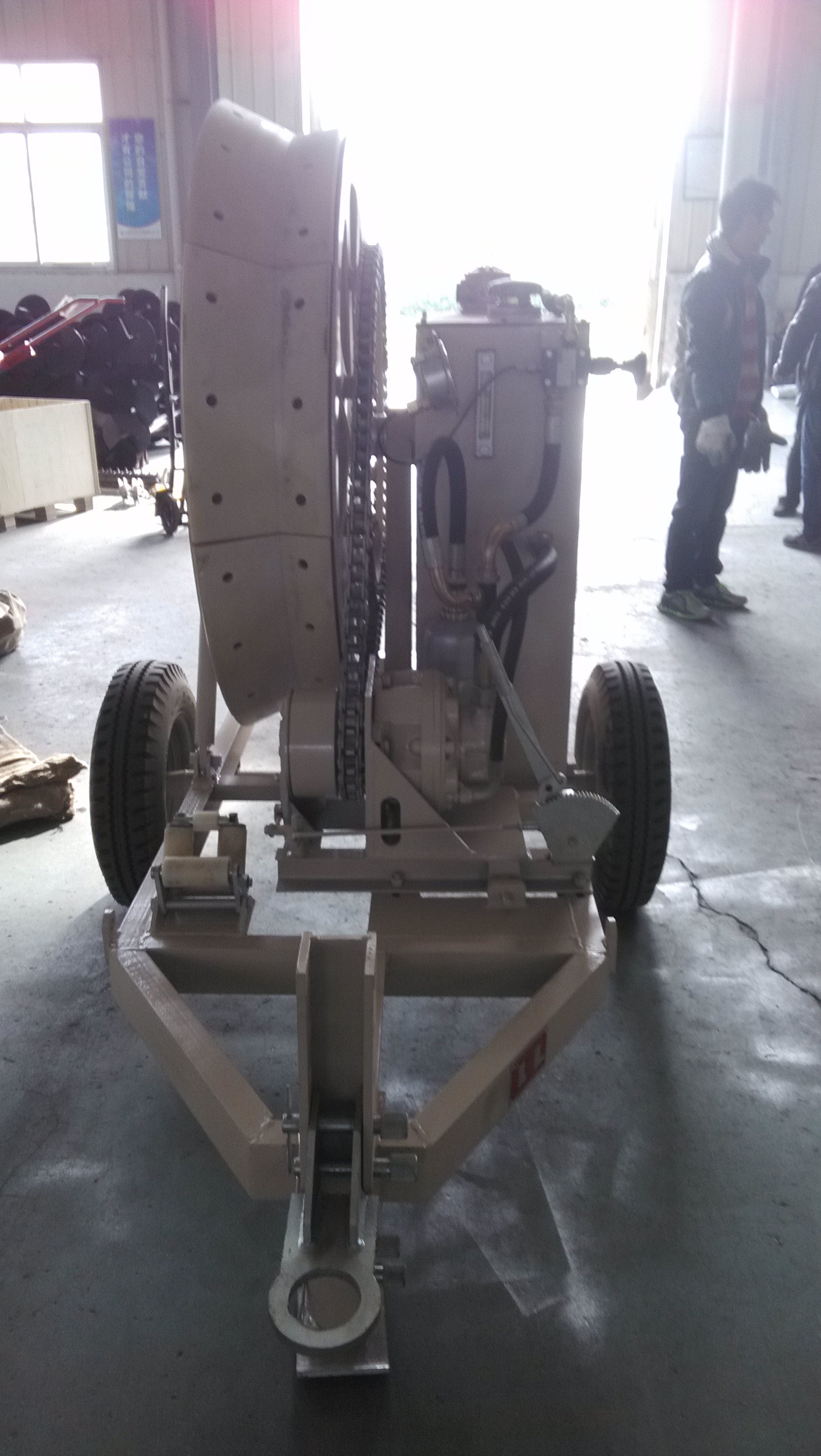

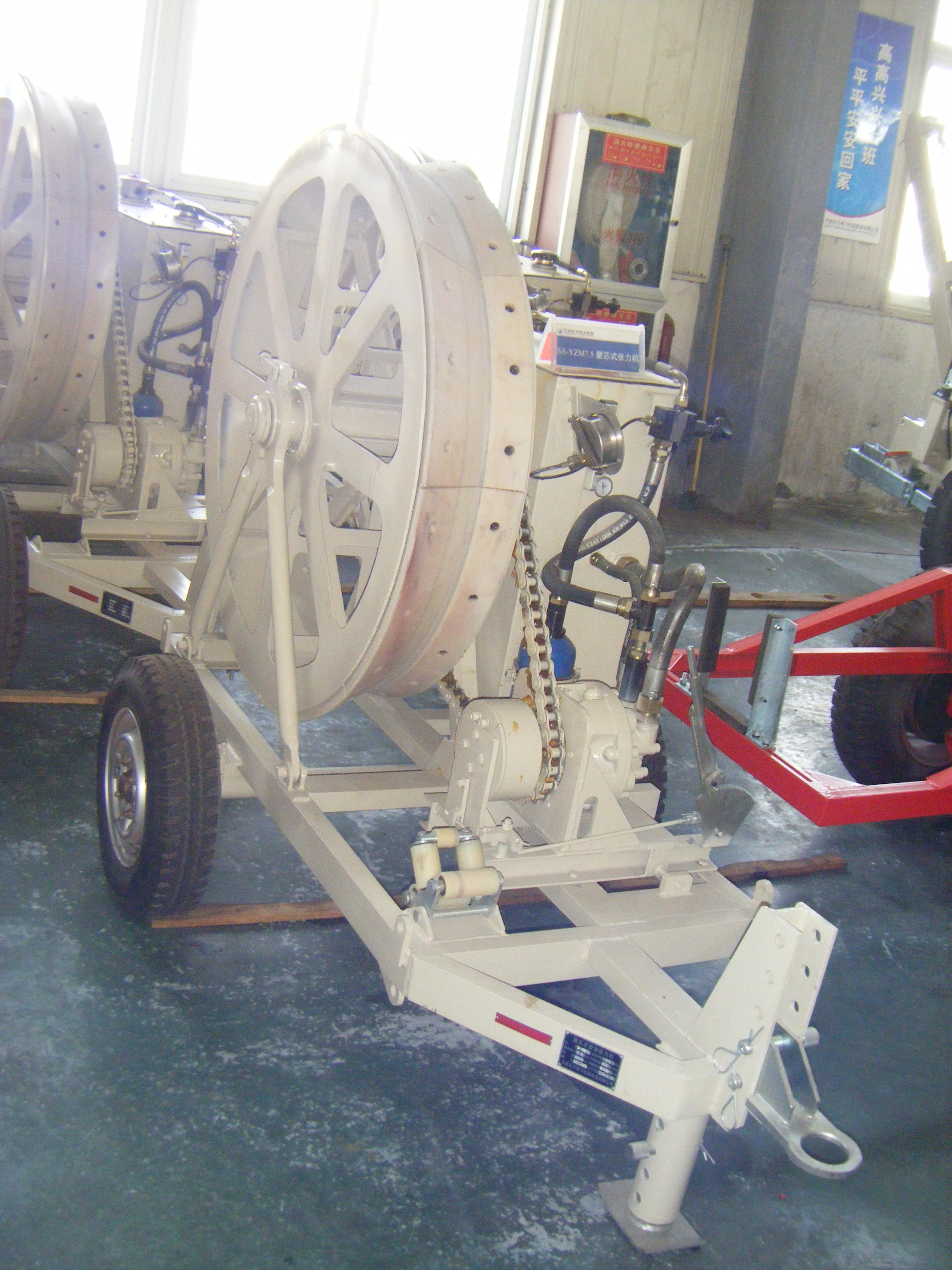

Model SA-YZM7.5 Hydraulic Puller Tensioner For Cable Pulling / Tensioning Stringing Conductor

Product Categories

Ningbo Newart Power Machinery Tools Co.,Ltd.

Contact Now

Name: Model SAYZM75 Hydraulic Puller Tensioner For Cable Pulling Tensioning Stringing Conductor
Brand: Newart
Price: 1 USD

Add to Cart

Configuration

1. Bull wheel with wear proof MC nylon lining segments.

2. Infinitely variable tension control and constant tension conductor stringing.

3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensu safety

4. Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand.

Item number	07212	07155	07171	07181	07192	07197
Model	SA-YZM7.5	SA-YZ30A	SA-YZ40A	SA-YZ2x35	SA-YZ2x40B	SA-YZ2x55
Maximum Tension(KN)	7.5	30	40	2x35/1x70	2x40/1x80	2x55/1x110
Continuous Tension(KN)	7.5	25	35	2x30/1x60	2x35/1x70	2x50/1x100
Maximum speed(KM/H)	40M/Min	5	5	5	5	5
Bottom of groovr diamere(MM)	Φ1100	Φ1200	Φ1200	Φ1200	Φ1500	Φ1600
Number of groovr (MM)	/	5	5	2x5	2x5	2x5
Number of groovr(KN)	/	20	40	2x30/1X60	2x40/1X80	2x50/1X100
Maximum speed back (KM/H)	/	/	3	2x2.1	2x1.5	2x2.1
Maximum suitable conductor diameter(MM)	/	Φ32	Φ32	Φ32	Φ40	Φ42.5
Engine power/speed (KW/RPM)	/	11/2200	37/2800	51/2500	51/2500	54/2500
Dimensions(M)	2.3x1.2x1.6	3.6x1.8x2.4	3.4x1.8x2.4	4.4x2.1x2.6	4.5x2.2x2.8	5.0x2.3x2.7
Weight(KG)	450	1700	2800	4000	4850	7500
