40KN Hydraulic Puller Tensioner 4T / 6T Max Tension For Transmision Line

Product Categories

Ningbo Newart Power Machinery Tools Co.,Ltd.

Contact Now

Name: 40KN Hydraulic Puller Tensioner 4T 6T Max Tension For Transmision Line
Brand: Newart
Price: 1 USD

Add to Cart

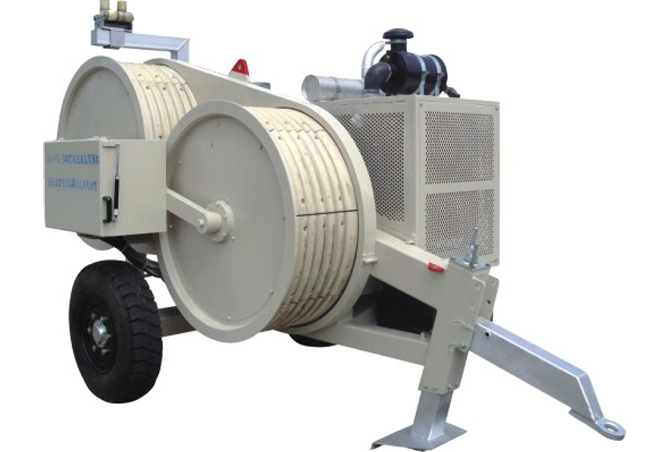

40KN Cable Tensioners Hydraulic SA-YQZ40D To Stringing Two Conductor At One Time

Feature

1. Bullwheel with wearproof MC nylon lining segments.

2. Infinitely variable tension control and constant tension conductor stringing .

3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .

4. attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .

Main component

1. Engine :Chinese famous brand water–cooled engine .

2. main pump and main motor : Rexroth (BOSCH )

3. Reducer : RR(Italian) or Rexroth

4. hydraulic valve : Rexroth (BOSCH )

5. radiator :AKG

6. hydraulic instrument :

7. it can choose :Deutz air–cooled engine

Item number	7223	7228



Model	SA-YQZ40D	SSA-YQZ60

	Puller and Tensioner

Maximum Tension(KN)	40	60
	35	35
Continuous Tension(KN)
Maximum speed(KM/H)	5	5


Bottom of groovr diamere(MM)	Φ1200	Φ150


Number of groovr(KN)	5	6


Number of groovr(KM/H)	40	60


maximum speed back(MM)	5	5


Diameter of Maximum suitable Conductor	Φ32	Φ40




Engine power/speed(KW/RPM)	851/2500	82.5/2000




Dimensions(M)	4.2×1.8×2.4	5.5×1.9×2.4


Weight(KG)	3600	4800
