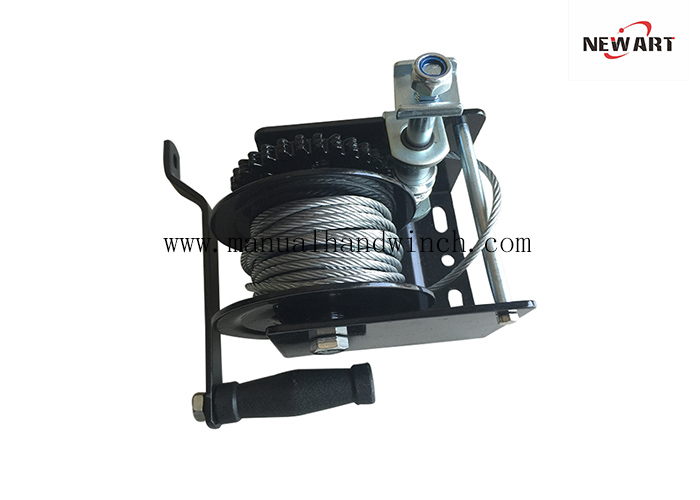

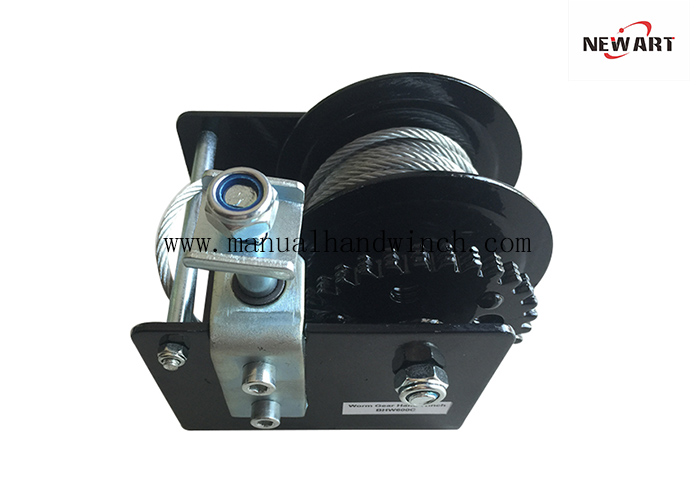

Steel Material Manual Worm Gear Winch Worm Gear Ceiling Hand Winch 1500 LB

1500 LB Manual Winches , Worm Gear Ceiling Hand Winch ,Worm Drive Winch

Worm gear winch allows for better load control and features a reinforced frame, comfort-grip handle. Worm gear provides load holding capability when handle is released. Reel stops automatically, locking load in place whenever the handle is released.

The worm gear hand winch is known for it’s robust construction. The winch can be used as lifting winch and pulling winch. The hand winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering of the worm gear hand winch.

Manual hand-operated gear drive winches, are designed for many lifting, lowering and pulling applications. Equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering and prevents and unintentional lowering of the load. Adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of the rope.

Specifications:

Model	BHW600CS	BHW600CD	BHW900CS	BHW900CD	BHW1100CS	BHW1100CD
Capacity (Lbs)	400kg(880lbs)	400kg(880lbs)	900kg(2000lbs)	900kg(2000lbs)	1100kg(2500lbs)	1100kg(2500lbs)
Gear ratio	31:1	31:1	41:1	41:1	51:1	51:1
Drum	Single	Divided	Single	Divided	Single	Divided
Drum-hub Diameter(mm)	￠38	￠38	￠38	￠38	￠50	￠50
Cable Diameter(mm)	￠4.8	￠4.8	￠5.0	￠5.0	￠5.6	￠5.6
Cable Length(m)	8	15	15	15	30	30
Hook Type	"Snap" hook	"Snap" hook	"Snap" hook	"Snap" hook	"Snap" hook	"Snap" hook
Surface Treatment	Black Spraying	Black Spraying	Black Spraying	Black Spraying	Black Spraying	Black Spraying
Hand length (mm)	280	280	280	280	280	280
N.W(kg)/pcs	4.3	4.3	5.5	5.5	6.7	6.7
Pcs/Each Carton	4pcs	4pcs	4pcs	4pcs	4pcs	4pcs
