Overhead Line Hydraulic Puller Tensioner Transmission Line Equipment 30 Ton

Product Categories

Ningbo Newart Power Machinery Tools Co.,Ltd.

Contact Now

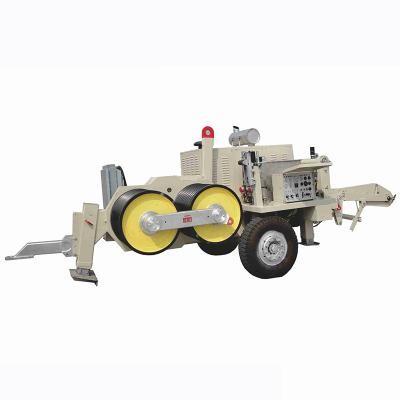

Name: Overhead Line Hydraulic Puller Tensioner Transmission Line Equipment 30 Ton
Brand: Newart
Price: 1 USD

Add to Cart

Transmission Line Hydraulic Traction Stringing Equipment for overhead transmission line construction

Configuration

Traction force,traction speed stepless adjustable,intuitive display;

Maximum traction can be preset,overload automatic protection;

Automatic braking without pressure,to ensure the operation safety when the engine

suddenly flameout or other reasons causing the system to lose pressure;

With wire rope automatic winding device,automatic rope laying,loading and unloading

convenience.

Item number		07001	07011	07031	07041	07051	07061	07065	07071	07075
Model		YQ-30Y	YQ-40Y	YQ-60Y	YQ-90Y	YQ-180Y	YQ-220Y	YQ-250Y	YQ-300Y	YQ-420Y
Maximum pull forc (KN)		30	40	60	90	180	220	250	300	420
Continuous pull forc (KN)		25	35	50	80	150	180	200	250	350
Maximum pull force (KM/H)		5	5	5	5	5	5	5	5	5
Bottom of groovr diamere (MM)		Φ300	Φ400	Φ460	Φ520	Φ630	Φ760	Φ820	Φ960	Φ960
Number of groovr (MM)		7	7	7	7	9	10	10	10	11
Maximum suitable stell rope diamete (MM)		Φ13	Φ16	Φ18	Φ20	Φ24	Φ30	Φ32	Φ38	Φ45
Maximum through connectors diamete (MM)		Φ40	Φ50	Φ60	Φ60	Φ63	Φ75	Φ80	Φ80	Φ80
Engine power/speed (KW/RPM)		31/ 2200	60/ 2000	77/ 2800	123/ 2500	209/ 2100	243/ 2100	261/ 2100	298/ 2100	402/ 2100
Dimensions (M)		3.2 x1.6x2	3.5 x2x2	3.8 x2.1x2.3	3.5 x2.1x2.5	5.5 x2.2x2.6	5.7 x2.3x2.6	5.8 x2.4x2.6	5.9 x2.5x2.9	6.1 x2.6x2.8
Weight (KG)		1500	`2500	3000	4300	7500	8000	9000	11500	14800
matching wire rope tray	Mode	GSP 950	GSP 1400	GSP 1400	GSP 1400	GSP 1600	GSP 1600	GSP 1600	GSP 1900	GSP 1900
matching wire rope tray	Item No.	07125A	07125C	07125C	07125C	07125D	07125D	07125D	07125E	07125E
